Item# A6200

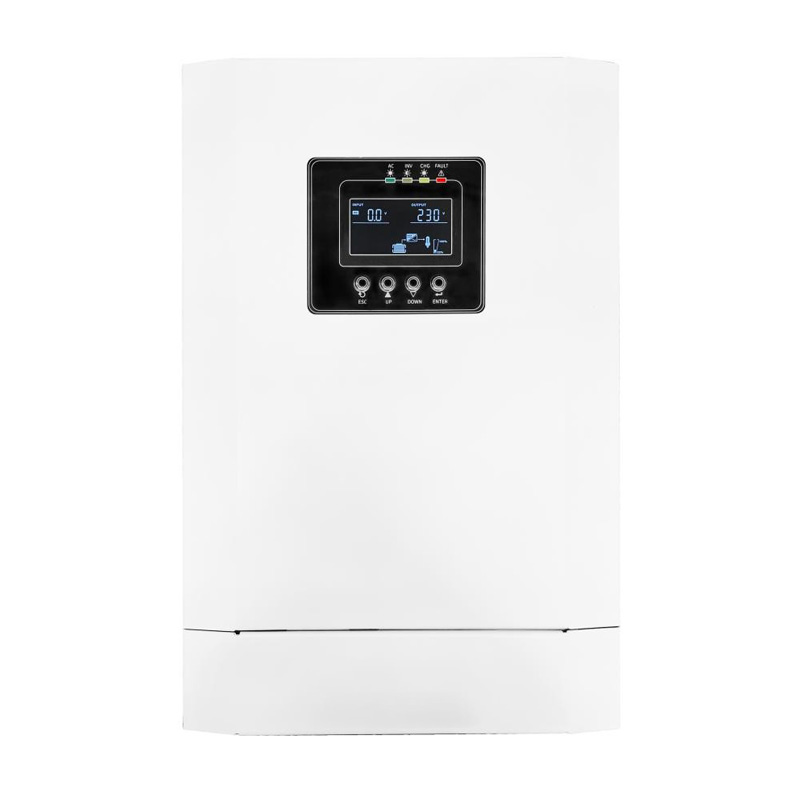

A6200 6200W Off-Grid Inverters

input

40-58.4V, DC

output

230VAC, 50HZ/60HZ

power

1000VA/800W

size

260*W250*H95mm

Pure Sine Wave Inverter
Built-in MPPT Solar Charge Controller
Optimized Intelligent Battery Charger
Configurable AC/Solar Input Priority via LCD Settings

Send Inquiry By Emali: [email protected]

Factory price

global shipping

customer service

quality assurance

Board Description

1. On/off switch
2. R5485
3. PV/SOLAR PANEL
4. BATTERY
5. AC IN/Electricity & AC OUT/LOAD
6. INPUT BREAKER

System Connection Diagram

The off-grid inverter operates independently from the utility grid. It converts solar energy (and optional generator input) to power household devices and charge batteries, ensuring a continuous and reliable power supply in remote areas or during outages.

Specification

MODEL	6200W+HV MPPT
Rated Power (W)	6200
Power Factor	1
AC Output Waveform	Pure sine
AC Output Voltage (VAC)	230
AC Output Frequency (Hz)	50
Battery Voltage (VDC)	48
AC GRID MODE
AC Voltage (VAC)	as grid/gen
AC Voltage Range (VAC)	176–264
AC Frequency (Hz)	as grid/gen
Transfer Time (typical ups, ms)	10ms
CHARGER MODE
AC Voltage (VAC)	230
AC Voltage Range (VAC)	176–264
Max. PV Array Power (W)	6000
MPPT Range @ Operating Voltage (VDC)	150–450
PV Array Open Circuit Voltage (Max, VDC)	480
Maximum AC Charge Current (A)	80
Maximum Solar Charge Current (A)	100
Maximum Charge Current (A)	100
AC Charging Peak Efficiency	94%
Solar Charging Efficiency (Max)	97%
Nominal Battery Voltage (VDC)	48
Floating Charge Voltage (VDC)	54
Bulk Charging Voltage (VDC)	56.4
Overcharge Protection (VDC)	66
Charging Algorithm	3-Step
BATTERY / INVERTER MODE
Nominal Battery Voltage (VDC)	48
Cold Start Voltage (VDC)	46
Peak Efficiency	92%
Overload Protection	60s@105~125%load 15s@125~150%load 200ms@>150%
Recommend Battery Type	sealed lead acid, GEL/AGM lead-acid or LFP
MECHANICS
Clear Dimension (D×W×H, mm)	106.8 x 334.4 x 412
Recommended Installation	Mounting vertically
